Detail Information |
|||
| Product_name: | Lifepo4 135Ah Battery | Battery_type: | Prismatic Lithium Iron Phosphate Batteries |
|---|---|---|---|
| Weight: | 2.63±0.05kg | Energy_density: | 165Wh/kg 365Wh/L |
| Cycle_life: | ≥2500 Times | ||
Product Description

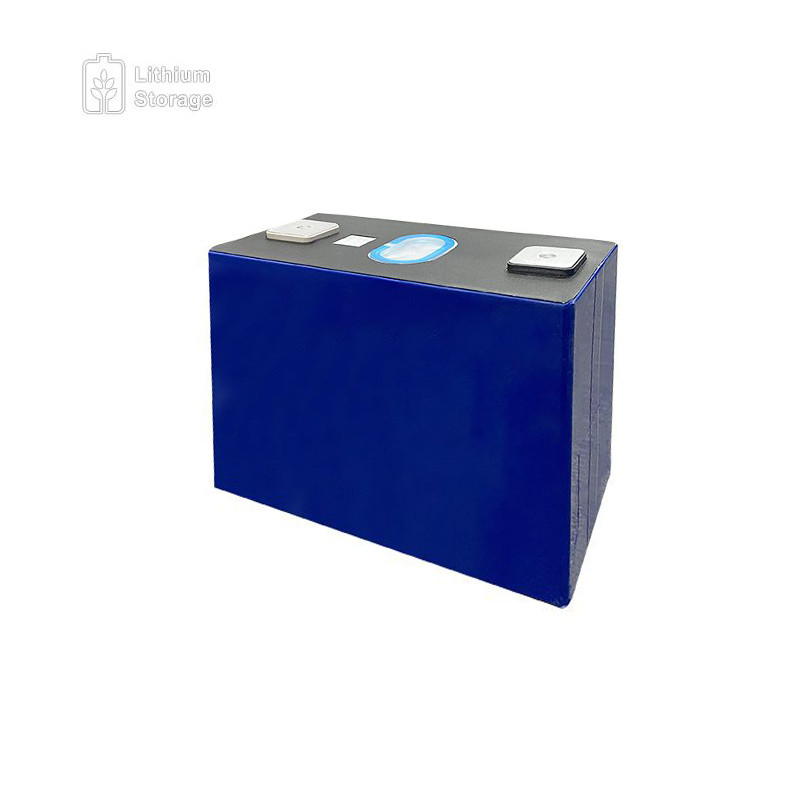

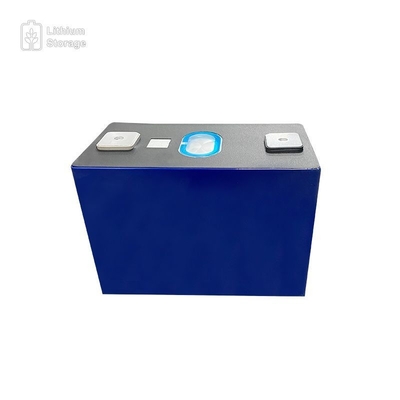

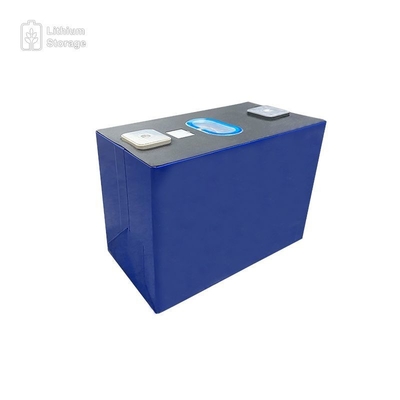

Lifepo4 135Ah Battery Description
LITHIUM STORAGE can offer different terminal solutions for cells with welding terminals, including screw terminals and Nut terminals. These solutions have passed multiple inspection testing items such as drawing force, shear force, and torque testing, etc., and have been applied in various electric vehicle and energy storage projects in different countries.
| No. | Item | Specification | Note |
| 1 | Rated Capacity | 135Ah | @1C |
| 2 | Nominal Voltage | 3.2V | |
| 3 | Actual Voltage Range | 2.5-3.65V | |
| 4 | Rated Discharge Current | ≤133 A | |
| 5 | Peak Discharge Current | ≤399A | @60s |
| 6 | Rated Charge Current | ≤213A | Typical value=133A |
| 7 | Peak Charge Current | ≤266A | @30s |
| 8 | Operating Temperature | Charge: 0℃~55℃ Discharge: -20℃~55℃ | |
| 9 | Storage Temperature | ﹣20℃~55℃ | |

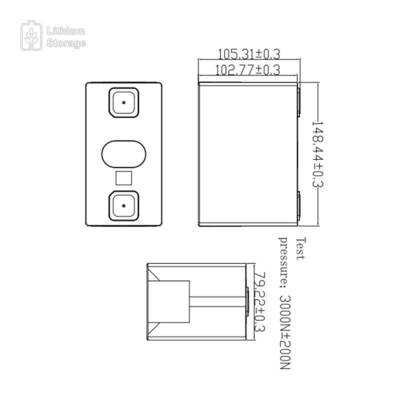

| 10 | Cell Dimensions | Thickness: 79.22±0.30m Length: 149.10±0.30mm Height: 102.77±0.30mm | |
| 11 | Cathode Material | LFP | |
| 12 | Weight | 2.63±0.05kg | |
| 13 | Energy density | 165Wh/kg 365Wh/L | |
| 14 | Cycle life | ≥2500 times | @1.6C/1C 100%DOD |
| 15 | Terminals | Welding/Screw terminal-Nut |

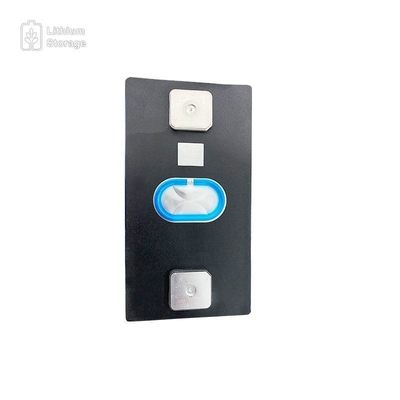

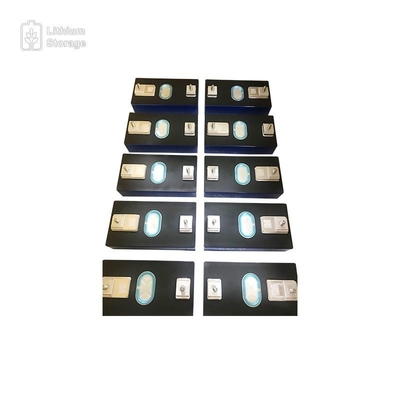

To suit the various connection demand from customers,
it is available to support cells with screw terminals or nut
terminals except welding terminals. The relevant torque
is recommended for avoiding excessive force which can
damage the terminal thread when the bolts are tight.
For applied bolts, busbar, and tighten torque are shown
in the table below.
| Parameter table | |||||||
| Cell type | Screw Terminals | Nut Terminals | Fasten torque | Remark | Standard busbar type | Non-standard busbar type | Current Capacity |
| LFP40Ah | / | M6*14 | 6N*m | Max repeated terminal screw times ≤3 | BS1-LFP40A | BS2-LFP40A | 1C |
| LFP50Ah | / | M6*14 | 6N*m | BS1-LFP50A | BS2-LFP50A | 1C | |
| LFP100Ah | / | M6*14 | 6N*m | BS1-LFP100A | BS2-LFP100A | 1C | |
| LFP135Ah | / | M6*14 | 6N*m | BS1-LFP135A | BS2-LFP135A | 1C | |
| LFP205Ah | M6*16 Bolt | M6*18 | 6N*m | BS1-LFP205A | BS2-LFP205A | 1C | |
| LFP280Ah | M6*16 Bolt | M6*18 | 6N*m | BS1-LFP280A | BS2-LFP280A | 1C | |
| LFP280Ah long cycle | M6*16 Bolt | M6*18 | 6N*m | BS1-LFP280A | BS2-LFP280A | 1C | |
| LFP302Ah | M6*16 Bolt | M6*18 | 6N*m | BS1-LFP302A | BS2-LFP302A | 1C | |
| NCM102Ah | / | M6*18 | 6N*m | BS1-NCM102A | BS2-NCM102A | 1C | |
| NCM177Ah | / | M6*18 | 6N*m | BS1-NCM177A | BS2-NCM177A | 1C | |
This product has passed the following certifications:
| Cell type | Quality Management System | Products Certification | |||||||||||||
| ISO-9001 | IATF16949 | ISO-14001 | ISO-45001 | GB/T 31485-2015 | GB/T 31486-2015 | GB/T 31484-2015 | IEC62619 | UL1642 | UL9540 | UL1973 | MSDS | UN38.3 | BIS | JET | |
| LFP40Ah | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | √ | √ | / | / |
| LFP50Ah | √ | √ | √ | √ | √ | √ | √ | √ | √ | / | / | √ | √ | √ | √ |
| LFP100Ah | √ | √ | √ | √ | √ | √ | √ | √ | / | / | / | √ | √ | / | / |
| LFP135Ah | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | √ | √ | √ | / |
| LFP205Ah | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | √ | √ | / | / |
| LFP280Ah | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | √ | √ | / | / |
| LFP280Ah long cycle | √ | √ | √ | √ | √ | √ | √ | √ | / | √ | √ | √ | √ | / | / |
| LFP302Ah | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | √ | √ | / | / |
| NCM102Ah | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | √ | √ | / | / |
| NCM177Ah | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | √ | √ | / | / |
01 02
Carton for air transportation and Meeting the UN38.3 package
plywood case for sea transportation standard for dangerous goods
The global economy is undergoing a transition from carbon-intensive energy resources to low-carbon energy resources, switching from fossil fuels with harm to the environment to cleaner and alternative renewable energy sources. Lithium-ion batteries as the most favorable electrochemical energy storage system are widely used in many fields due to high energy density, excellent self-discharging rate, high operation voltage, long cycle life, and no memory effect. The application fields include not limiting trucks, cars, buses, golf carts, AGV, material handling equipment(forklifts), as the driving force, and various energy storage systems.
Lifepo4 135Ah Battery products can be applied in trucks, cars, buses, forklifts as driving force and various energy storage systems.
