| Product_attributes: | Energy Supply Cabinet Series,Energy Storage System Designed Specially For Industrial And Commercial Scenarios Like Factories, Parks, Commercial Buildings, Charging Stations, And Data Centers. | ||
|---|---|---|---|
Product Description
Product Description

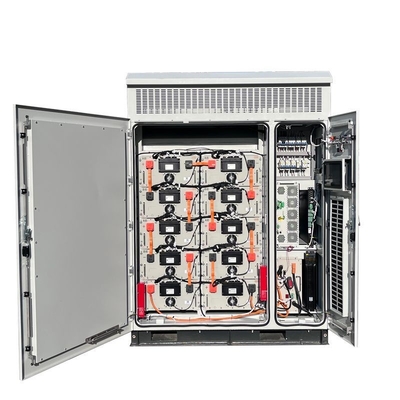

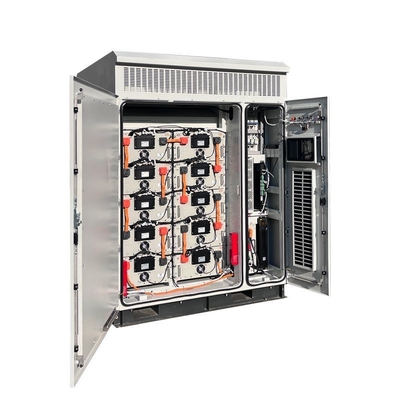

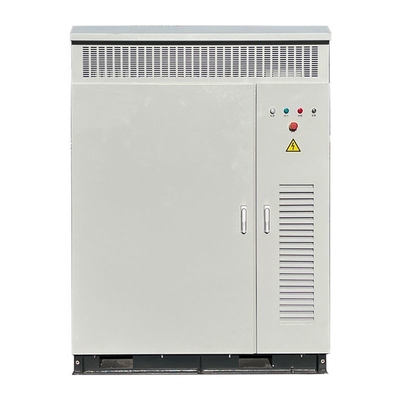

Energy supply cabinet series of products are energy storage system designed specially for industrial and commercial scenarios like factories, parks, commercial buildings, charging stations, and data centers.This series of product mainly consists of battery packs, PCS , thermal management systems (TMSs), fire fighting system (FFS), and battery management system (BMS). The functions such as energy expansion, energy arbitrage and solar integration can be realized via energy control strategy setting of our energy management system.
Technical Data of Air-cooling Commercial&Industrial ESS
| Product Model | LS215A-100K-1S240-10P24-280 |
| AC Side | |
| Rated Power | 100kW |
| Maximum Output Power | 120kW,1min |
| Permissible Grid Voltage | 400Vac(-15%～+10%) |
| Permissible Gird Frequency | 50Hz±2.5Hz |
| Rated Input Current | 145A |
| Wiring Configuration | 3P4W+PE |
| DC Side | |
| Cell Type | LFP 3.2V/280AH |
| Rated Energy | 215.04kWh |
| Maximum Output Power | 100kW |
| Rated Voltage | 768Vdc |
| Voltage Range | 648-876Vdc |
| Battery Pack Configuration | 1P24S/21.504kWh |
| Battery System Configuration | 1P240S（10*1P24S) |
| Energy | 215kWh |
| Maximum Output Power | 192A |
| System Data | |
| Dimensions (DxWxH） | 1500*2050*1250mm |
| Weight | 2650kg |
| Noise | <75dB |
| IP Rating | IP54 |
| Operating Temperature | -20~50℃(>45℃ derating) |
| Cooling | Air-cooling |
| Ambient Humidity | 0-95%(non-condensing) |
| Operating Altitude | 2000m(derating if more than 2000m) |
| Fire Protection Method | aerosol/heptafluoropropane (optional) |
| Communication Interface | RS485,Ethernet,CAN |
| Communication Protocols | Modbus TCP/RTU |
